Medical Actuator
01NS60

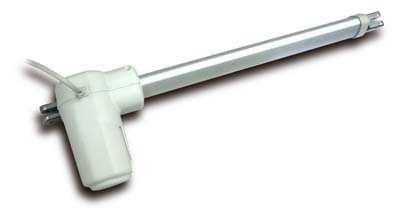

Actuator 01NS60

Specification:
Model 01NS60
Input 12/24V DC
Max. Load 6000N(Push) / 4000N (pull)
Standard Speed 4.2mm/sec (no load) / 2.6mm/sec (full load)
Stroke 60~400mm(Customized Stroke Available)
Duty Cycle: 10%


Preset Limit Switches
Various Clevis to Clevis Mounting
IP54



Option:
  • Quick Release
  • Hall Effect Sensor
  • Только усилие толкания
  • Push Only
  • Optional or Customized Front Mounting Bracket
  • Spiral Cable
  • IP65/IP66


Model No. Designations
01NS60- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed V.S Load
228.288

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C81

8: Front connector
2: Rear connector
QR.HS.PO.SN....

Option
QR: Quick Release
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only
SN: Safety Nut
IP65/IP66

01NS6X
XV2O-
120-

Input Voltage
100V AC
120V AC
230V AC
24-

Output Voltage
24: 24V DC
12: 12V DC
1

Handset
1: for 1 handset
2: for 2 handset
L: for 1 handset
+ 1 nurse lock
3

Output Port
1: for 1 actuator
2: for 2 actuator
3: for 3 actuator



  Stroke 60 100 150 200 250 300 350 400
01NS60 Retracted Length 234 274 324 374 424 474 524 574
Extended Length 294 374 474 574 674 774 874 974
01NS60-QR1 Retracted Length 250 290 340 390 440 490 540 590
Extended Length 310 390 490 590 690 790 890 990
01NS-QR2 Retracted Length 252 292 342 392 442 492 542 592
Extended Length 312 392 492 592 692 792 892 992

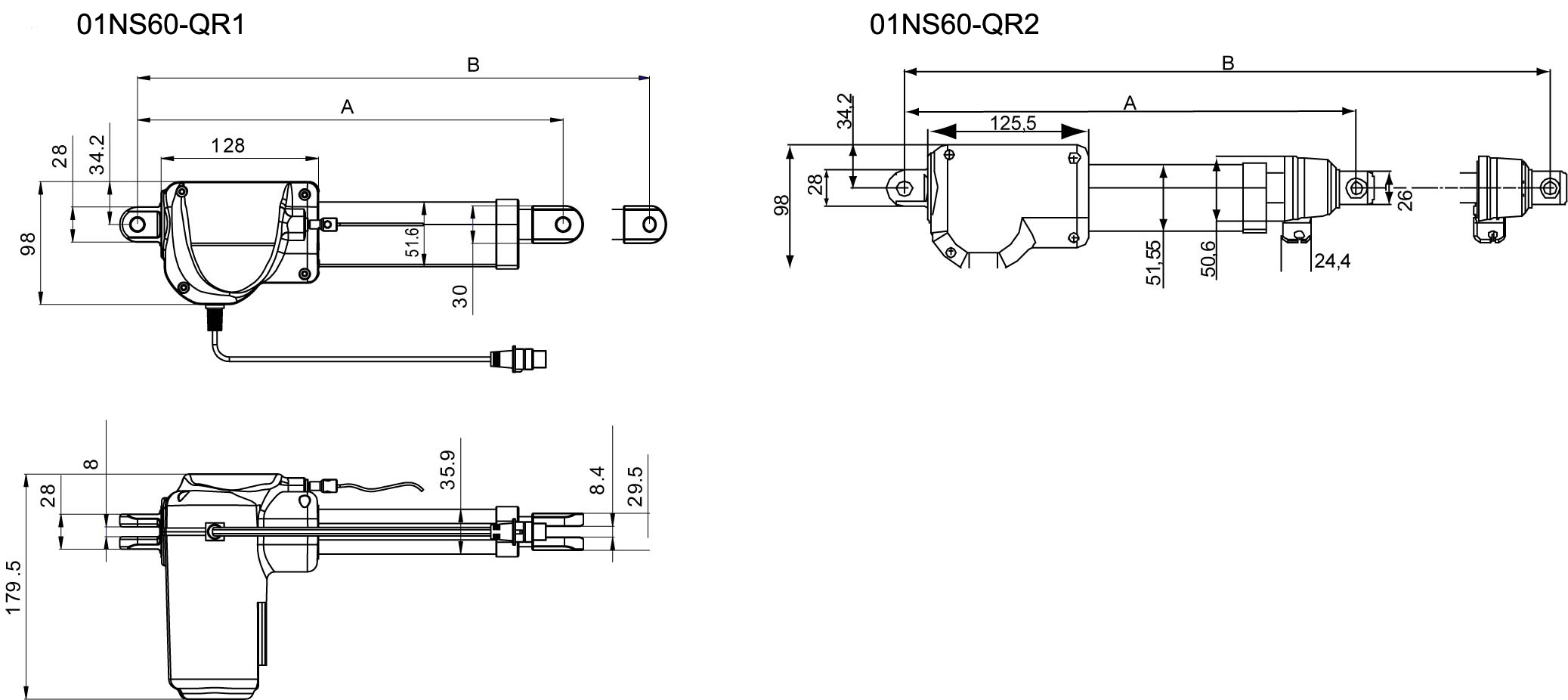

Actuator 01NS60 draw

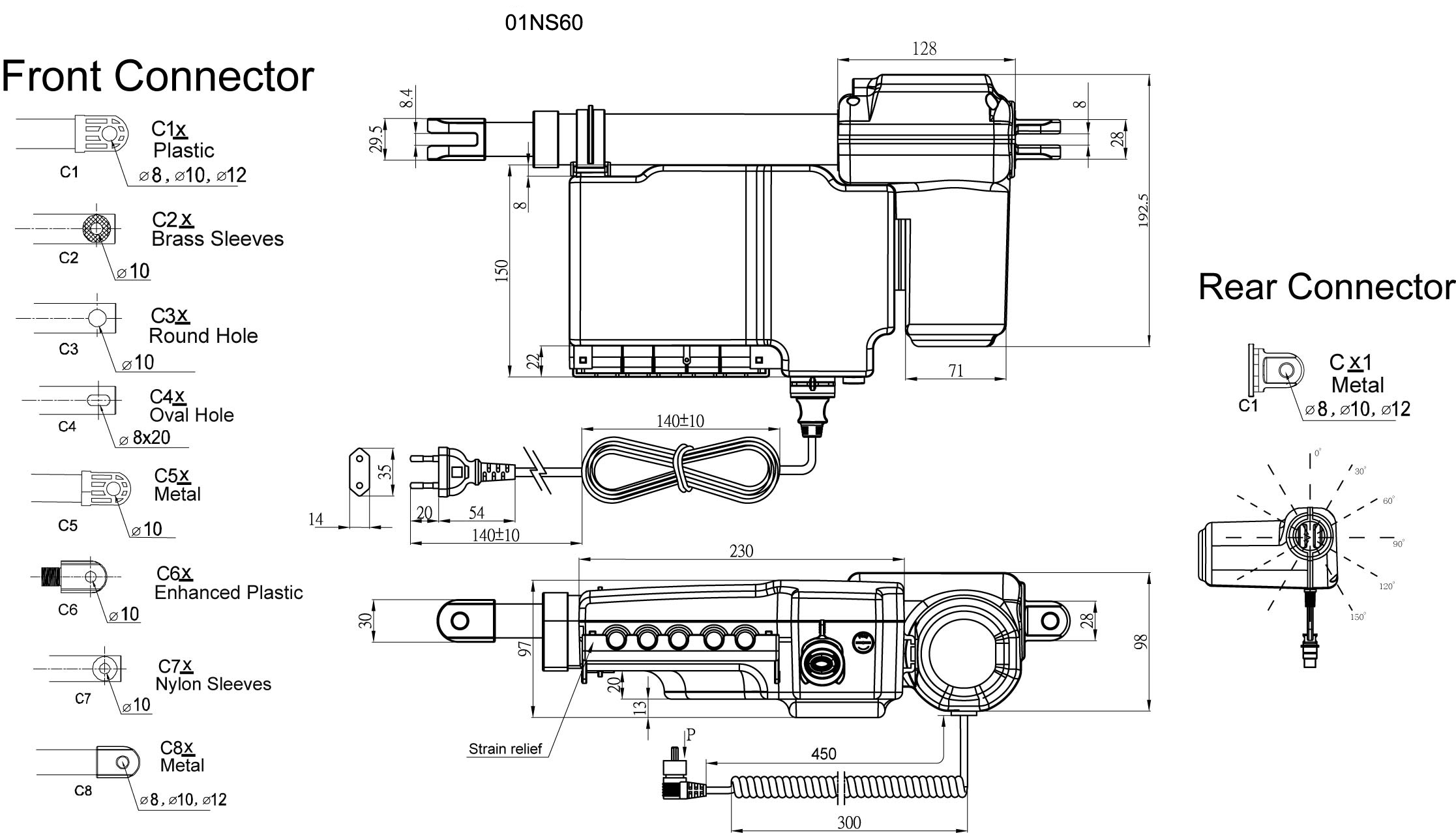

Actuator 01NS60 draw

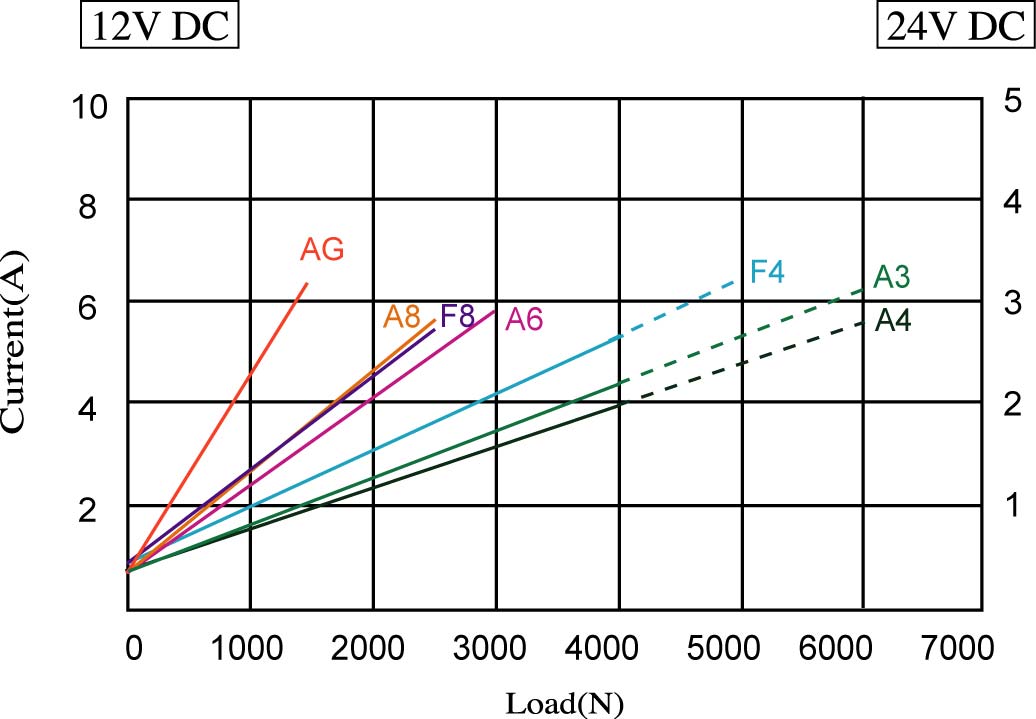

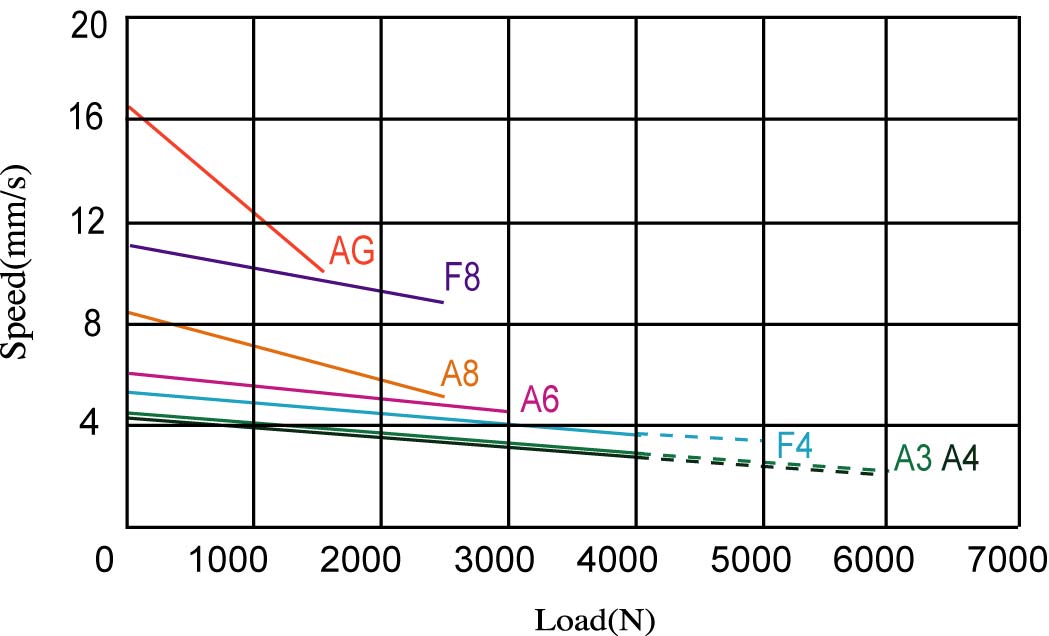

Speed vs Load Current vs Load
Actuator 01NS60 Actuator 01NS60
