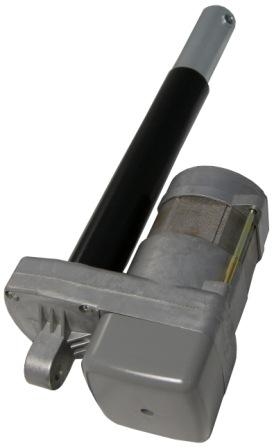

Actuator 01KP5




Actuator 01KP5

Specification:
Model 01KP5
Input 115/230 V AC
Max. Load 6000N (Push) / 4000N (Pull)
Max. Speed 6.1 mm/sec
Duty Cycle 10%


ACME Screw Type
Max. Load: 6000N (Push) / 4000N (Pull)
Motor Voltage: 115/230V AC
Power: 1/6 HP
Max. Speed: 6.1mm/sec
Standard Stroke: 50/100/200mm
Adjustable Limit Switches
Potentiometer
Thermal Overload Protection in Motor
Duty Cycle: 10%


Option:
  • Potentiometer
  • Adjustable limit switches
  • Optional or Customized Front/Rear Mounting Bracket
  • Protection: IP65


Model No. Designations
01KP5- 115-
Voltage
115 V AC / 60Hz
230V AC / 50Hz
6-
6: 1/6 HP
C1-
C1: Tube Mounting
C2: Screw Mounting
50
Stroke
Stroke
50mm
100mm
200mm


Speed vs LoadCurrent vs Load

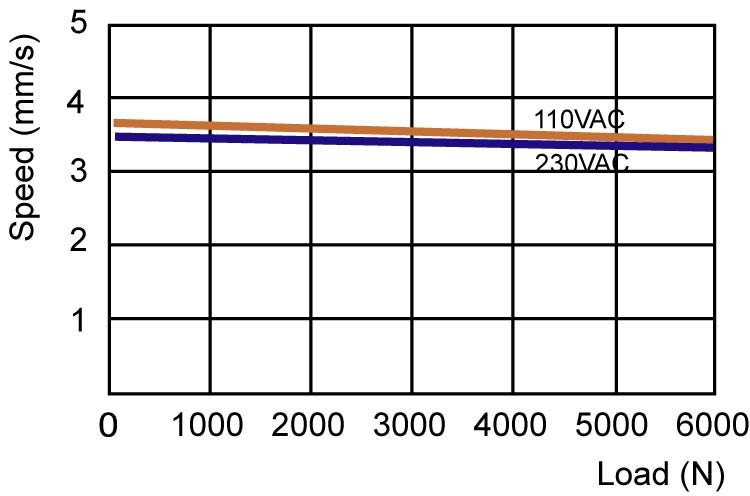

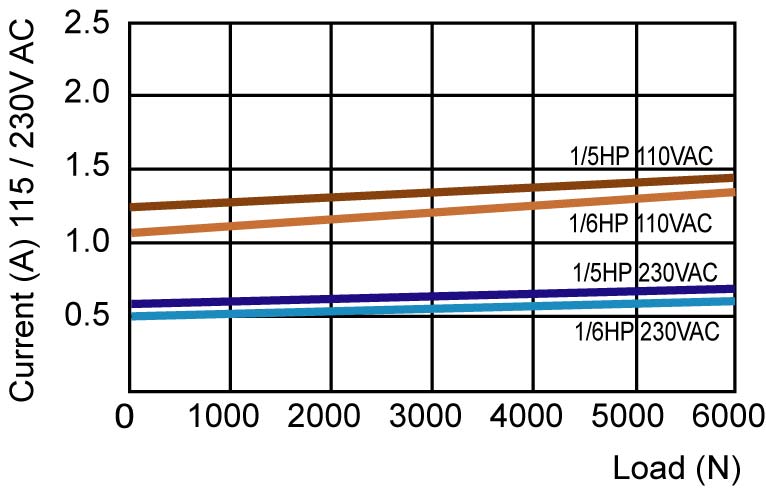

Actuator 01KP5 Speed vs Load Actuator 01KP5 Current vs Load

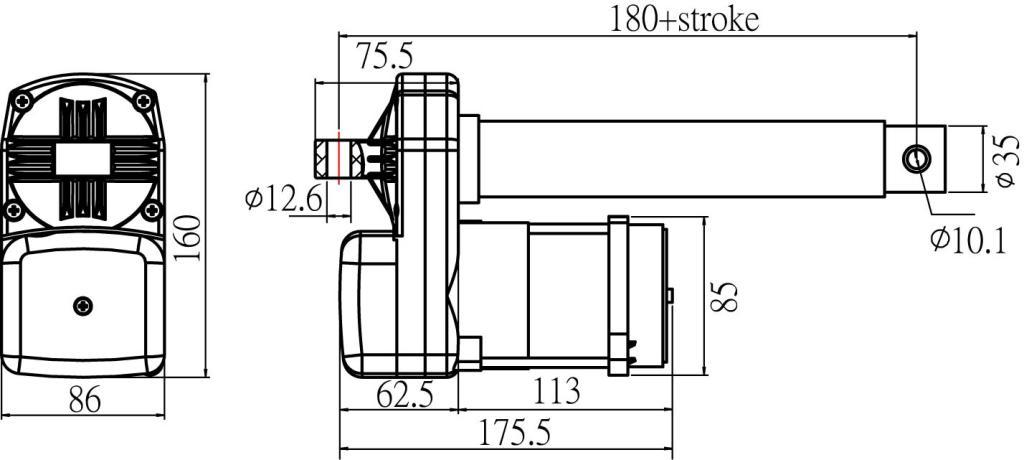

Actuator 01KP5  Draw
