Gate Opener System

Tel. +49 (0)

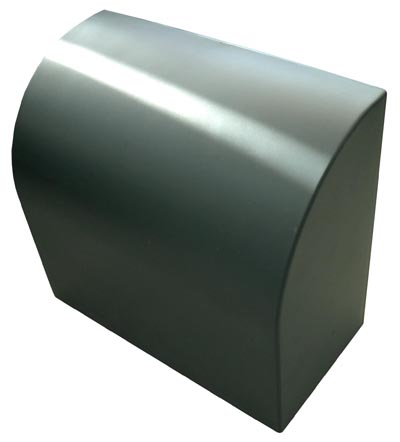

Solar Control Box

Control Box 01FXN1

Model 01FXN1
Input 110 / 230V AC;
60 /50 Hz
Output 12V DC /
80W Max
Remote Control Frequency 433.92MHz w/
Rolling Code
Recharging Function Built-in, 12V Battery , not included
Weight (Kgs) 2.6Kgs
Dimensions (mm) 250(L)x137(W)x225(H) mm

Able to control dual-gate and single-gate operation
Auto-Close function
Adjustable over-current setting
Obstacble detection (a set of photocells required)
Support external switch
Support battery recharging function by solar energy
