Actuator
01UP5 Acme

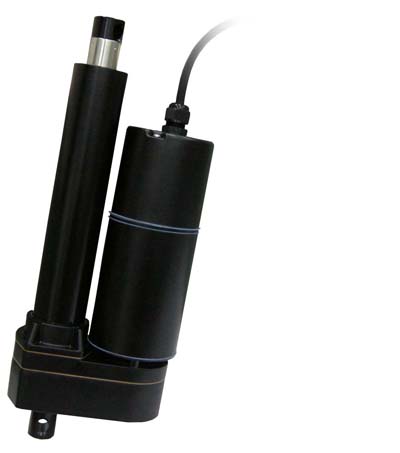

Actuator 01UP5A

Specification:
Model 01UP5A
Input 100/115/230 V AC
Max. Load 3500N
Max. Speed 28 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 10:1, 20:1, 40:1
Duty Cycle 25%
Environment -26 ° C ~ 65 ° C


Max Load: 3500N
Motor Voltage: 100/115/230V AC
Max. Speed: 28mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Powder metallurgy gears
Aluminum alloy housing
Overload protection by clutch
Self-Locking
Thermal Overload Protection in the Motor
Steel extension tube
Working temperature: -26 ° C to +65 ° C
Duty Cycle: 25%
Gear Ratio: 10:1, 20:1, 40:1
Protection: IP54


Option:
  • Potentiometer
  • Adjustable limit switches
  • Optional or Customized Front/Rear Mounting Bracket
  • Protection: IP65


Model No. Designations
01UP5- 230-
Voltage
230V AC / 50Hz
115 V AC / 60Hz
100 V AC / 60Hz
20-
Gear Ratio
10-10:1
20-20:1
40-40:1
A-
B:ACME
A:Ball Screw
610
Stroke
102mm
153mm
.
.
(mm)
LT.POT.IP65
LT: Limit Switch
POT: Potentiometer
IP65


Stroke 102 153 203 305 457 610
Retracted Length 262 313 364 465 668 821

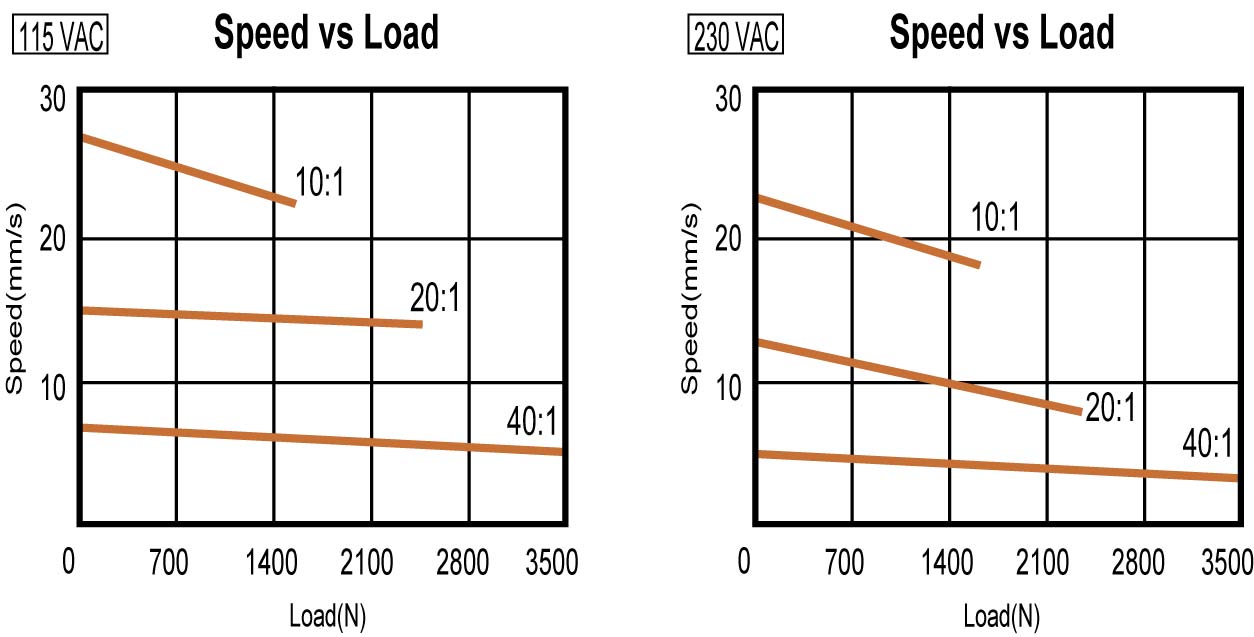

Speed vs Load

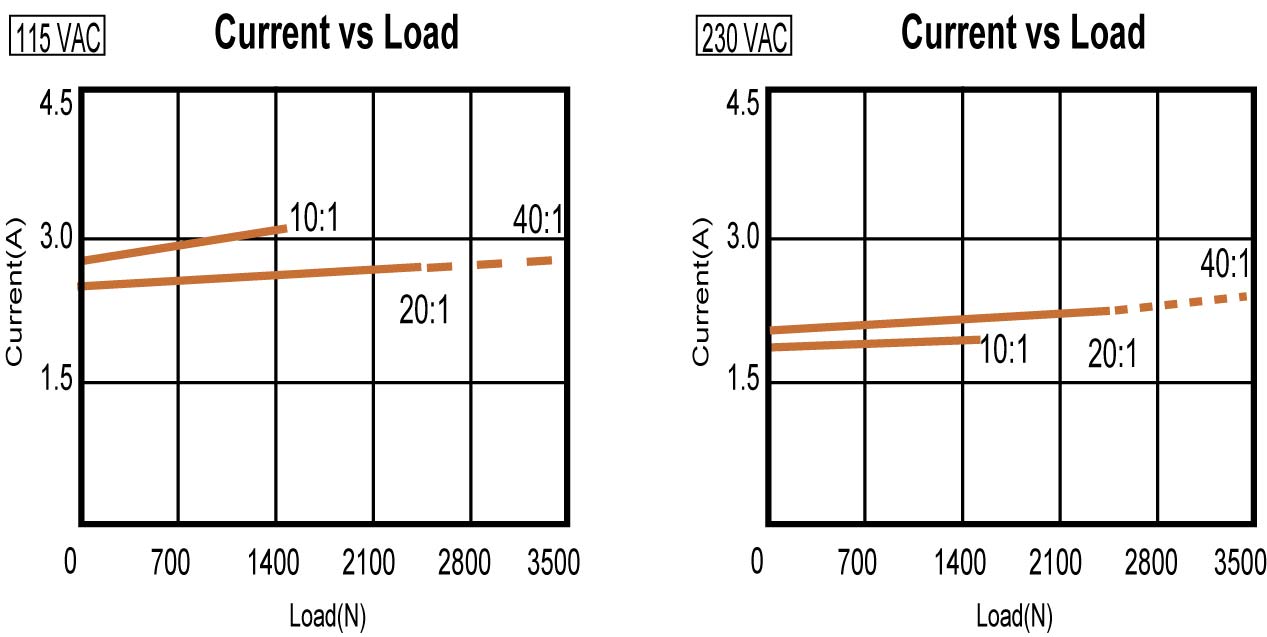

Current vs Load

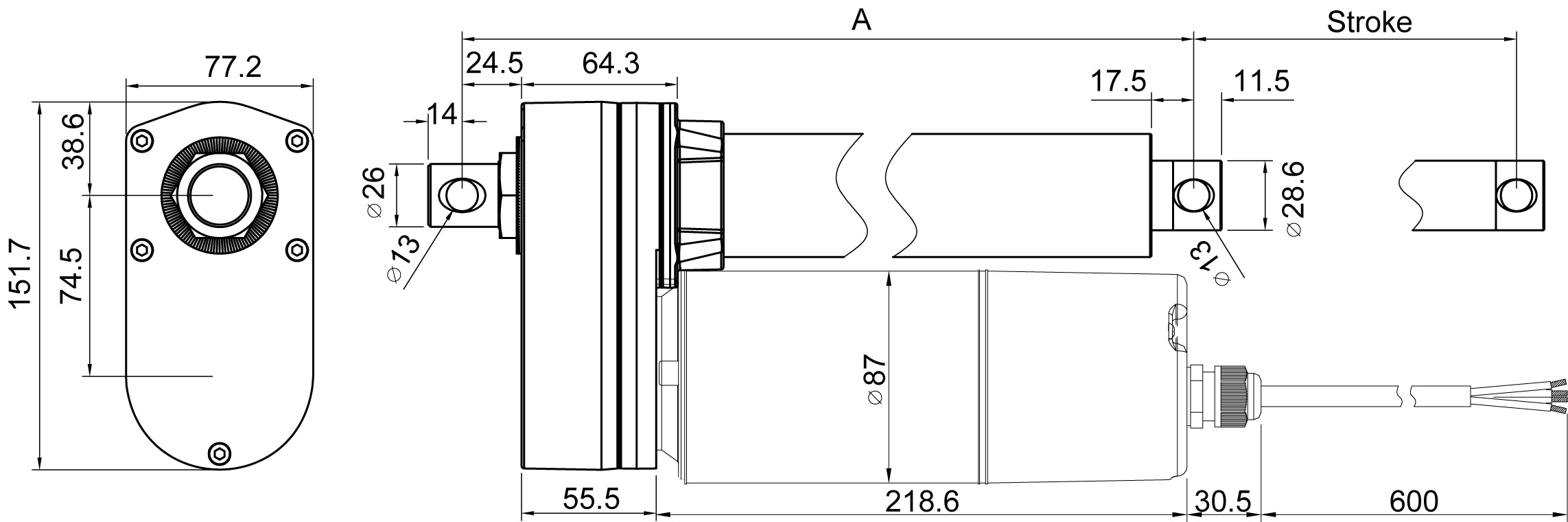

Standart:
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-3,8mm) 262 313 364 465 668 821


Actuator 01US10 Standart

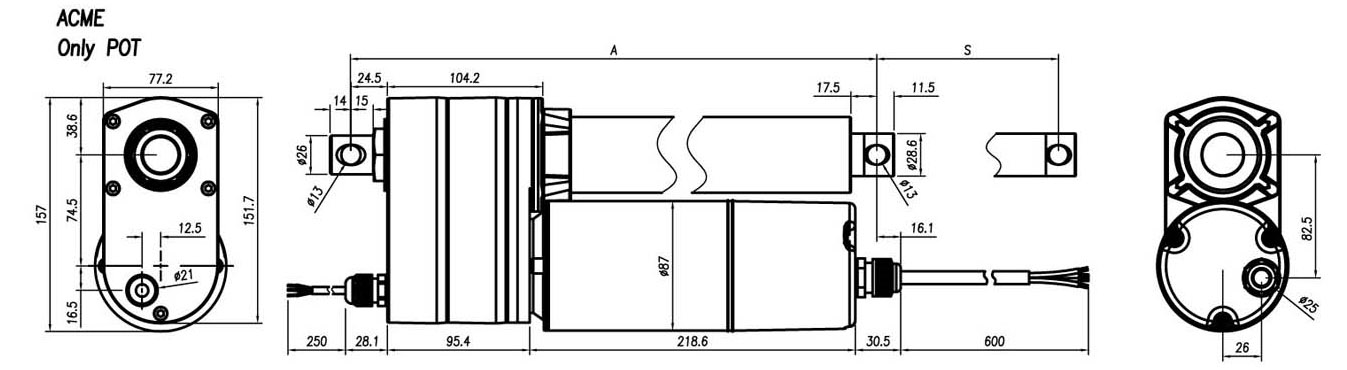

Potentiometer
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-3,8mm) 302 353 404 505 708 861


Actuator 01US10  Potentiometer

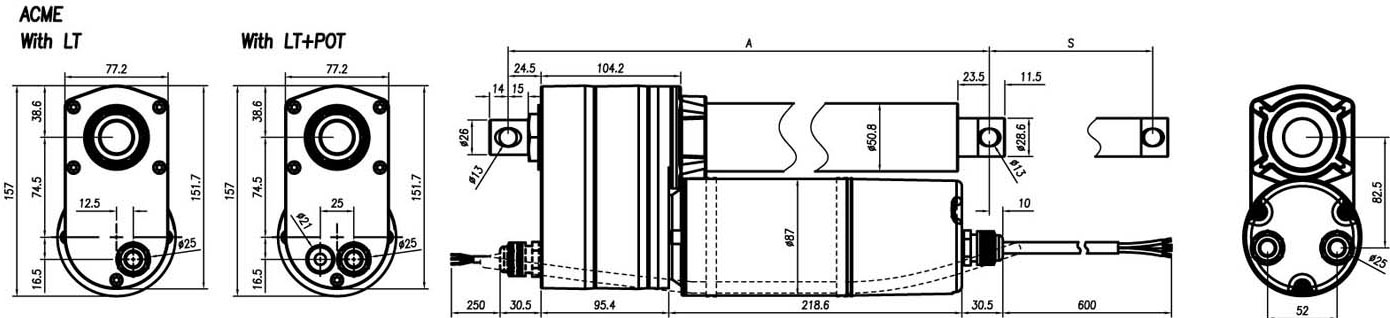

With Limit Switches and Potentiometer
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-5mm) 359 410 460 613 765 918


Actuator 01US10 With Limit Switches and Potentiometer
