Control Box for Patient Lift
01XVO1

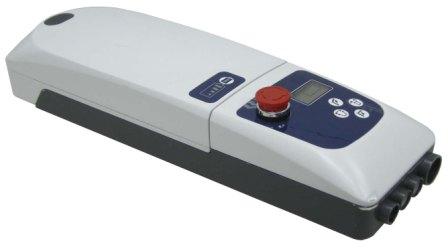

01XVO1 Control Box for Patient Lift

Specification:
Model 01XVO1
Input 100/120/230V
AC,
50/60Hz
Output 24V DC

Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 V DC
Pulling-Proof Design to Lock AC Plug
Software Over-current Protection
Overload Protection (Hardware)
Actuatorĺs Over-duty Alarm by LCD
Connection for up to 2 Actuators

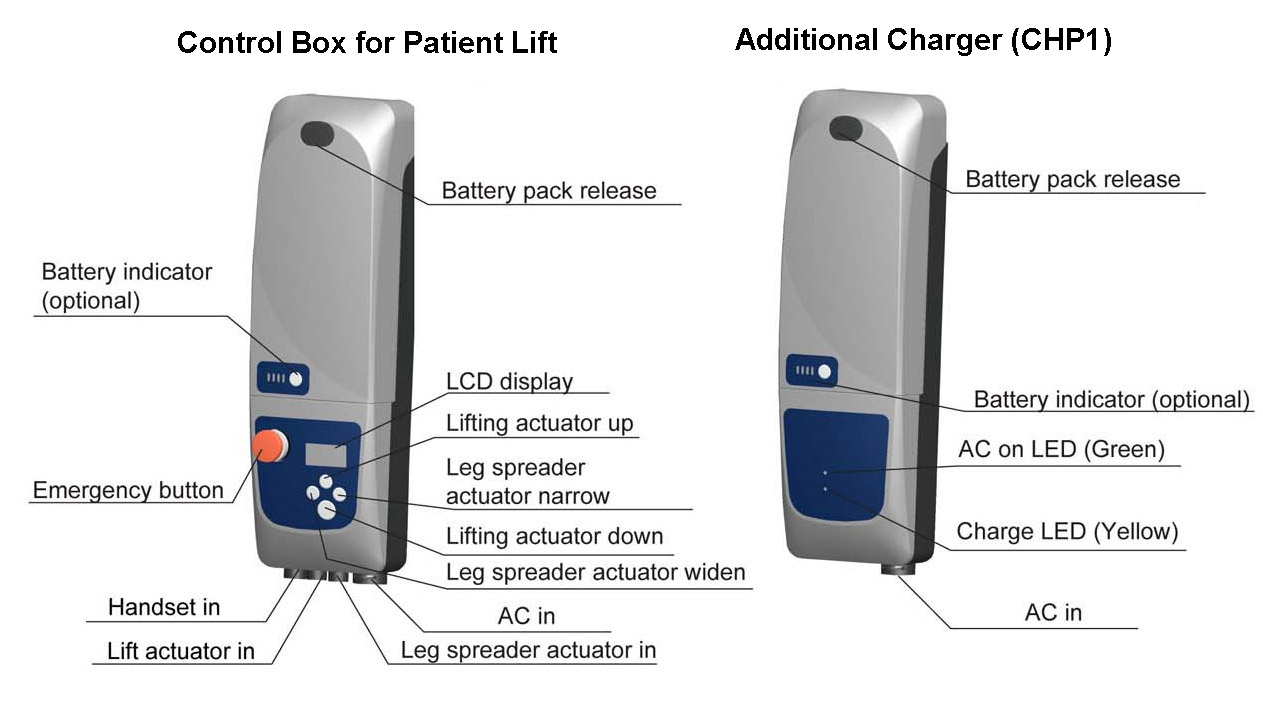

Emergency Stop Button
Control Panel with Four Buttons (except Handset)
Internal Charger (Max. 800mA)
Battery Capacity LCD Display
Low Battery Alarm
Duty Cycle: 10% (Max. 2 min. Continuous Use)
Operation Temperature: 5 ° C to 40 ° C
IP65

Option:
Battery volume indicator on battery pack
Soft Start and Stop for Lifting Actuator
Additional Charger (CHP1)


Model No. Designations:
01XVO1- 120-
Input
100 VAC
120 VAC
230 VAC
50 / 60├÷
24-
Output
24 VDC
2-
Actuator
1:1 actuator
2:2 actuator
P1-
Plug P1:13.6 Plug P2:16.7 Plug
B1-
Battery
B1: 5 AH
B2: 5 AH with Indicator


01XVO1 Control Box for Patient Lift
